Universal Power Supply Description
Especially flexible and universally applicable plug-in power supply with different, adjustable voltages.
With the help of the included key the output voltage can be adjusted at the rotary switch in 7 different steps (3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V). With an output current of 2.25A, it delivers a maximum power of 27W.

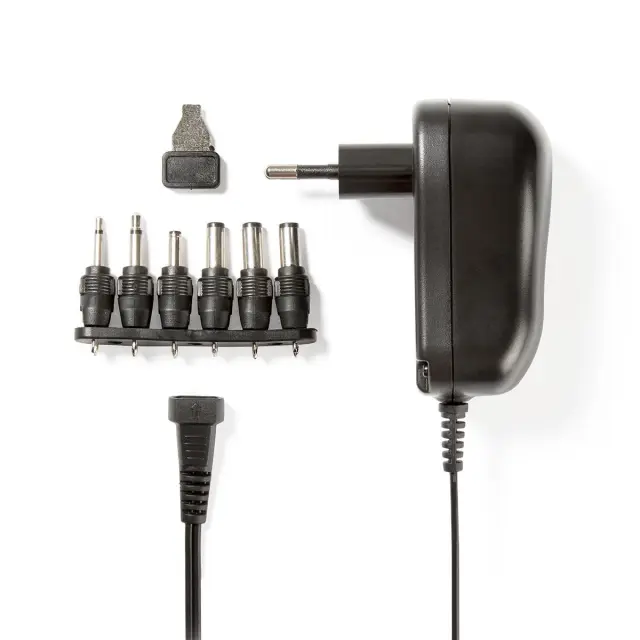

Thanks to the total of 6 plug-in adapters (see below), the power supply can power a wide variety of devices, such as notebooks, external hard drives, phones, chargers, routers, scanners, DVD players, docking stations, media players, motor controllers, various office equipment, and more.
The additional USB Type-A adapter and the LED terminal strip adapter not only significantly expand the range of applications to include a variety of small electronic devices, but are also of interest to hobbyists.
Safety is provided by overload, overvoltage and short-circuit protection, which is integrated in the device.
Complies with all EU safety standards.
Universal Power Supply Features
High efficiency (up to 87%)
Interchangeable adapters: 2.35 x 0.7mm; 3.5 x 1.35mm; 4.0 x 1.7mm; 5.5 x 2.1mm; 5.5 x 2.5mm hollow
plug(outside/inside), 2.5 mono jack plug, USB Type-A socket, LED terminal strip
Protected against overload, overvoltage, as well as short circuits
RoHS and REACH compliant
GS certified
Universal Power Supply Technical Data
